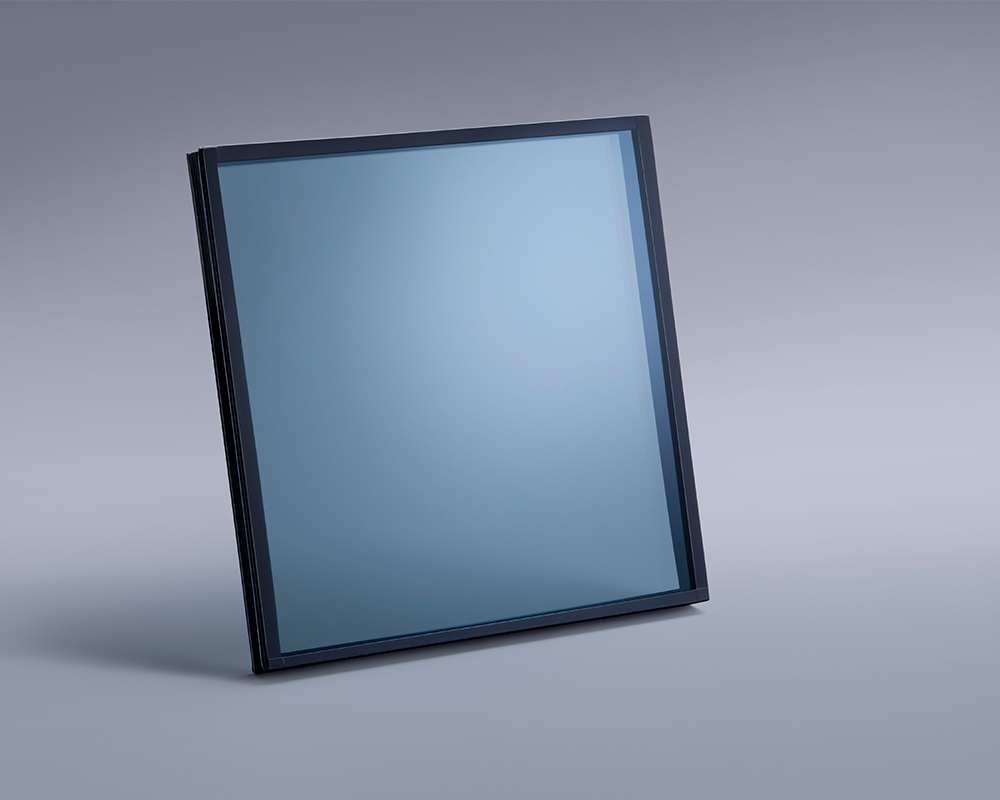

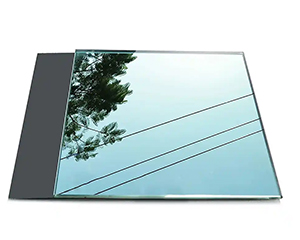

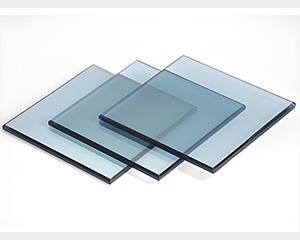

Solar Control Glass
|
Technical Specifications |
| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple |
| Filling |
Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Solar Heat Regulation: Pyrolytic Low-E coating achieves SHGC 0.22 with 62% visible light transmittance.
- UV Blocking: 99% UV radiation rejection rate protects interior furnishings.
- Selective Spectrum: Infrared rejection up to 85% while maintaining 70% VLT.
- Thermal Efficiency: 1.1 W/(m²·K) U-value with 16mm argon-filled cavity.
- Glare Reduction: 0.35 light-to-solar gain ratio (LSG) minimizes eye strain.
- Safety Compliance: Tempered outer glass meets impact standard.
- Acoustic Performance: STC 38 rating with 24mm asymmetric glazing.
- Durable Coating: Hard-coated surface withstands 1000hr Taber abrasion test.
- Hurricane Resistance: Passes 4.5kg missile impact at 34m/s.

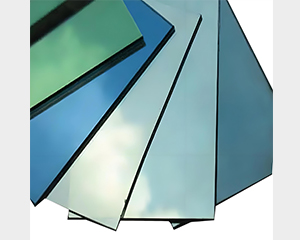

- Custom Tinting: 8 color options with 15-75% VLT adjustability.
- Fire Safety: 30-minute integrity rating with ceramic interlayer option.
- Lifetime Warranty: 20-year coating performance guarantee.
|
