Asymmetrical Thickness Glass
|
Technical Specifications |

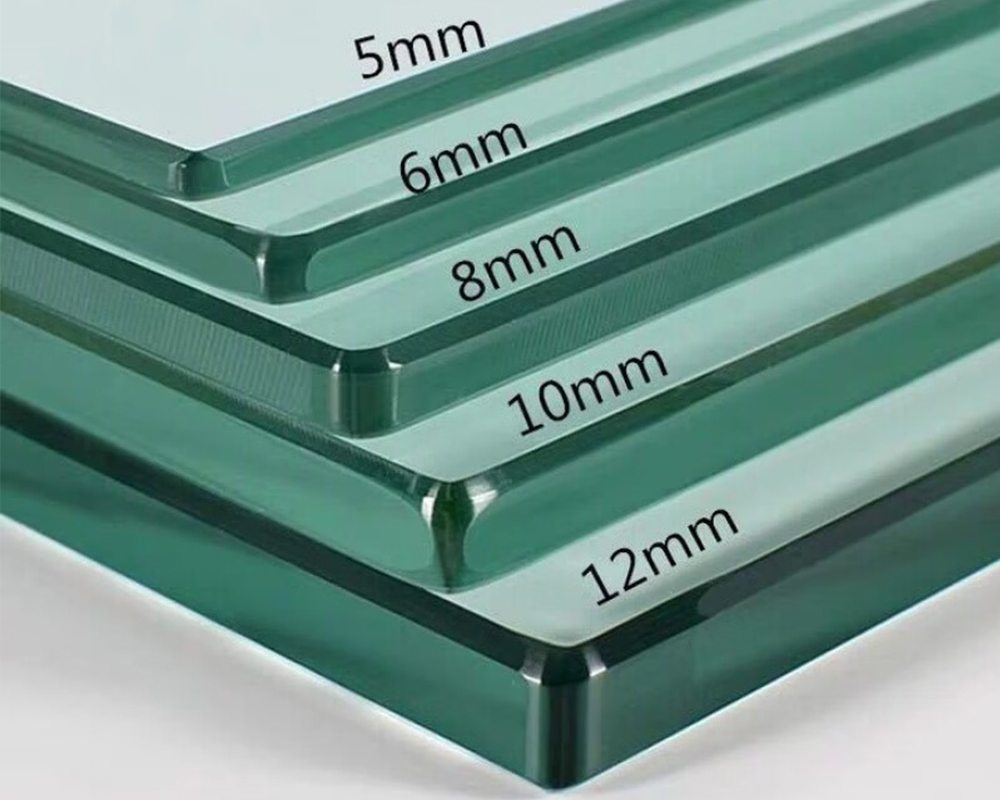

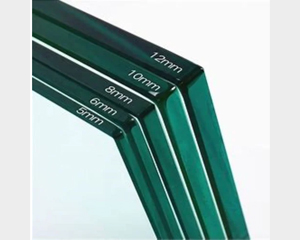

| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple |
| Filling |
Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Frequency Targeting: 4+6+8mm staggered glass configuration disrupts 125-4000Hz noise spectrum, achieving STC 48.
- Structural Stability: Interlayer-staggered design reduces resonance by 35% compared to symmetrical units.
- Acoustic PVB: 1.52mm sound-damping interlayer with 95% UV blockage.
- Condensation Control: Triple-sealed argon-filled cavity maintains ≤15% RH internal humidity.
- Hurricane Resistance: Passes 9kg 2x4 timber impact at 50ft/s.
- Custom Asymmetry: 15+ thickness combinations (3-12mm range) for targeted frequency attenuation.
- Anti-Vibration: Decoupled frame system reduces flanking noise by 22dB.
- Energy Efficiency: Low-E coating + asymmetry achieves U-value 0.53 W/(m²·K).
- Self-Cleaning Option: Photocatalytic outer layer maintains 92% light transmission.
- Quick Installation: Pre-assembled units compatible with window systems.
|
