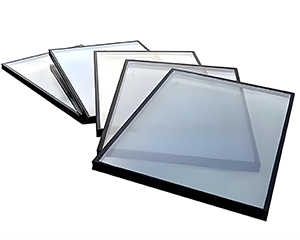

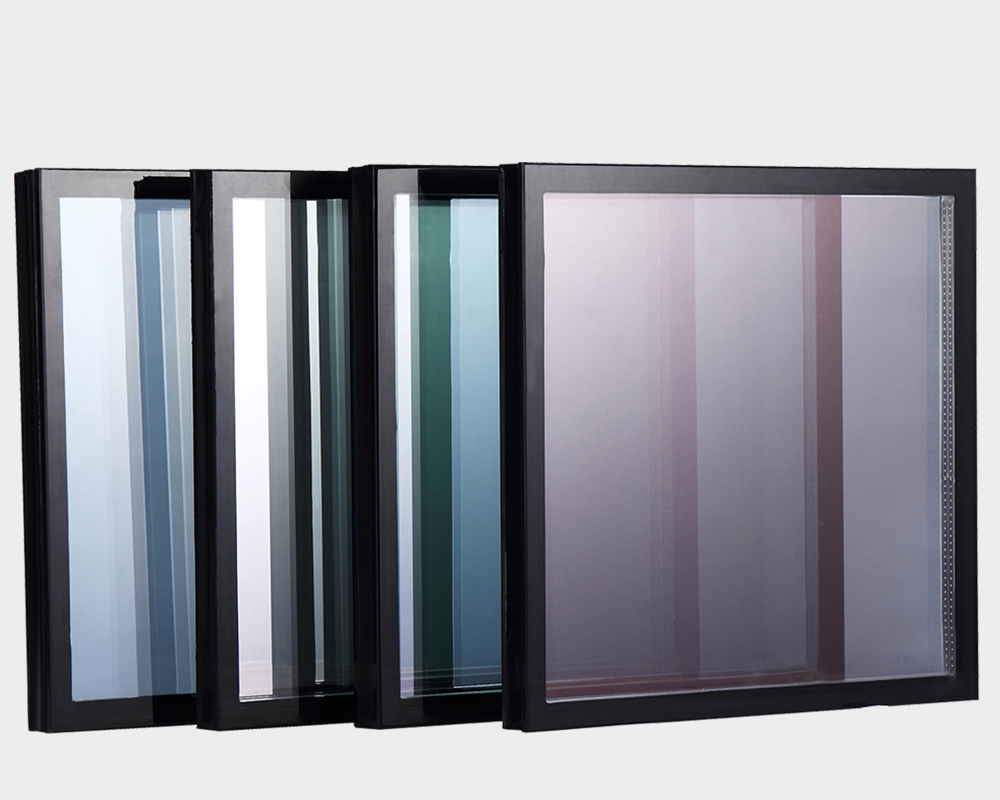

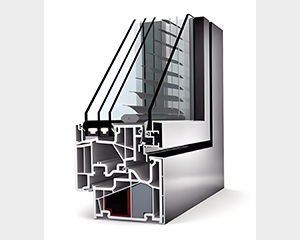

Double Glazing Units
|
Technical Specifications |
| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple |
| Filling |
Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Thermal Insulation: 16mm argon-filled cavity with Low-E coating achieves U-value 1.0 W/(m²·K), reducing energy costs by 40%.
- Acoustic Performance: Asymmetric 4+12A+6mm glass configuration reaches STC 35.
- UV Protection: Blocks 98% UV radiation while maintaining 80% visible light transmittance.
- Safety Compliance: 6mm tempered outer glass meets impact standard.
- Custom Spacers: Optional spacers (6-27mm width) for thermal/acoustic optimization.
- Gas Retention: ≤0.5% annual argon loss rate with dual seal system.
- Hurricane Resistance: Passes 4.5kg missile impact at 24m/s.
- Self-Cleaning Option: Photocatalytic outer surface decomposes organic dirt.
- Anti-Reflective Coating: ≤1.5% reflectance for museum-grade clarity.
- Fire Safety: 30-minute integrity with fire-rated configuration.
- Modular Design: Compatible with all major window systems.
- Pressure Equalization: Micro-ventilation slots maintain 10Pa balance.
- Lifetime Warranty: 20-year seal failure guarantee.
|
