Gas-Filled Units
|
Technical Specifications |
| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple |
| Filling |

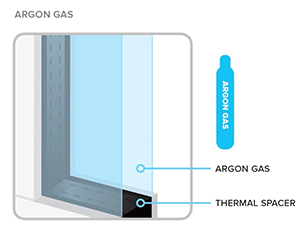

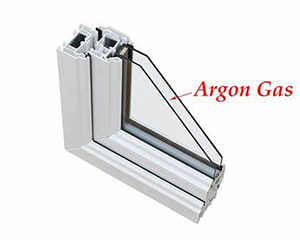

Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features

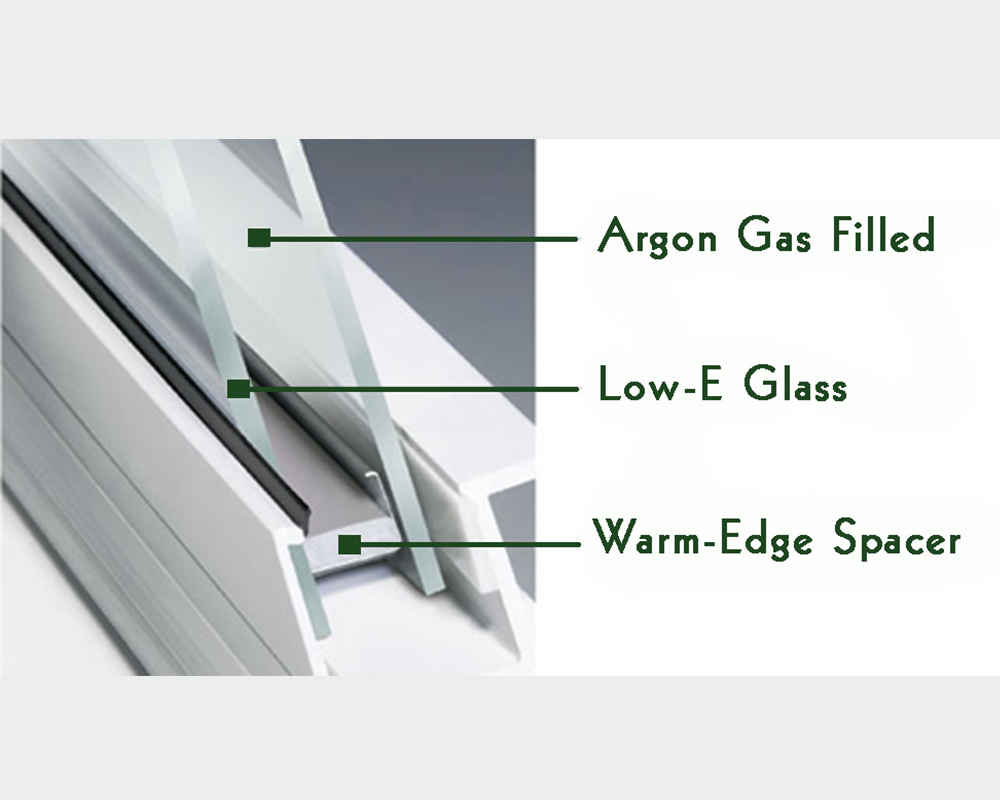

- Advanced Gas Fill: 90% argon/10% air mixture improves U-value by 30% compared to air-filled units.
- Gas Retention: ≤0.8% annual gas loss rate with dual butyl+hot-melt seal system.
- Thermal Performance: 16mm cavity achieves U-value 0.96 W/(m²·K) with Low-E coating.
- Acoustic Enhancement: 12mm asymmetric spacing reduces 38dB traffic noise.
- Durable Seals: Stainless steel spacer passes 5000-hour humidity cycling.
- Safety Compliance: 6mm tempered outer glass meets safety standard.
- UV Protection: Blocks 99% UV radiation with 82% VLT.
- Hurricane Ready: Passes 4.5kg missile impact test.
- Lifetime Warranty: 25-year seal integrity guarantee.
- Anti-Explosion Design: 2.28mm PVB interlayer optional for blast zones.
|
