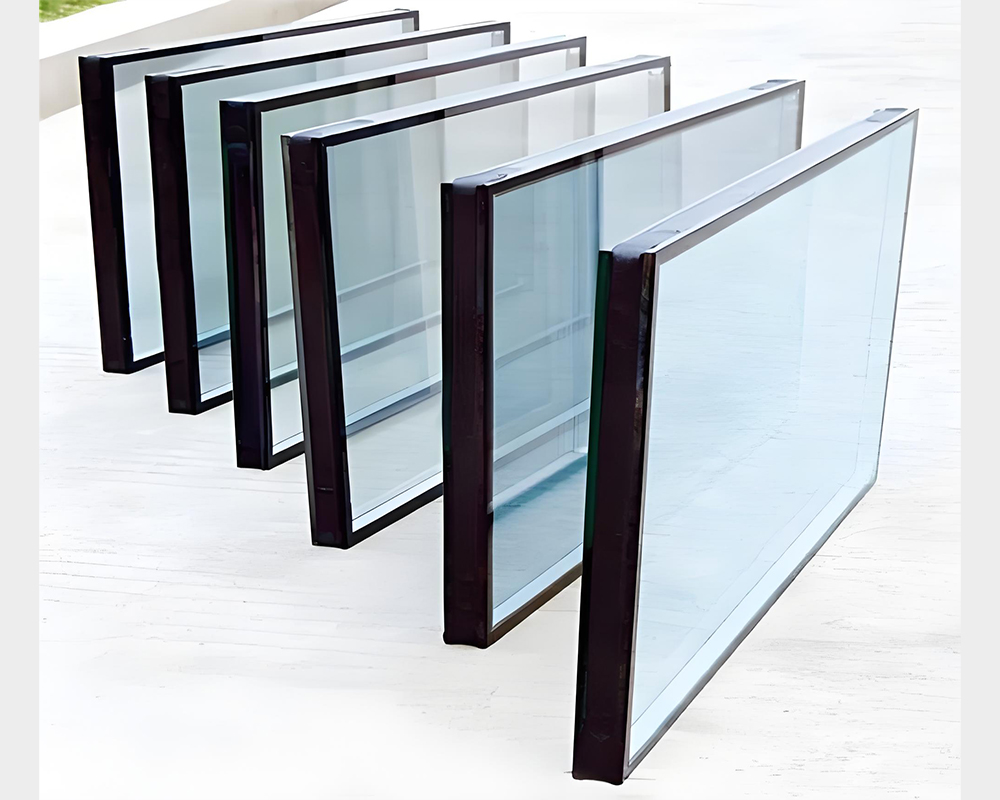

Anti-Condensation Glass
|
Technical Specifications |

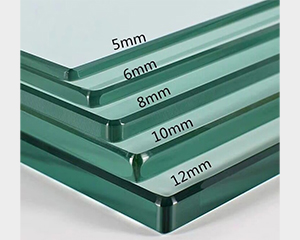

| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple |
| Filling |
Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Dew Point Control: 1.2W/mK warm edge spacer maintains glass edge temperature 8°C above room dew point.
- Triple-Seal Barrier: TPS+Butyl+Silicon hybrid sealing system achieves 0.02 m³/(m·h) air permeability.
- Thermal Insulation: Low-E coating + argon-filled cavity achieves U-value 0.62 W/(m²·K) and SHGC 0.28.
- Hybrid Glazing: 4mm tempered outer glass + 6mm laminated inner layer with 1.52mm acoustic PVB interlayer.
- Pressure Equalization: Micro-ventilation channels maintain 5Pa balanced pressure differential.
- Self-Cleaning Surface: Photocatalytic TiO2 coating decomposes organic deposits under UV light.
- Frost Resistance: Withstands 150 freeze-thaw cycles without seal failure.
|
