Safety & Security Glass
|
Technical Specifications |

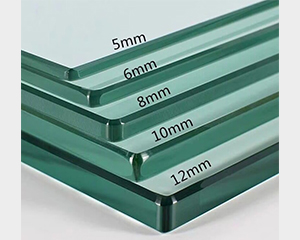

| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |

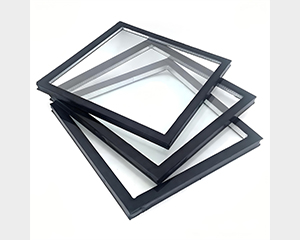

| Layers |
Double or Triple |
| Filling |
Air or Argon |
| Size |
Custome Made |

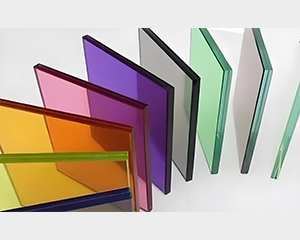

| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Impact Resistance: 8.76mm laminated glass withstands 170J impact energy.
- Ballistic Protection: 33mm multi-layer composite.
- Blast Resistance: Withstands 100kPa overpressure from 100kg TNT at 35m.
- Fire Integrity: 60/90/120-minute with ceramic fire-resistant interlayer.
- UV Control: Blocks 99.9% UV radiation while maintaining 82% visible light transmittance.
- Forced Entry Defense: 2.28mm PVB interlayer delays penetration by 15 minutes.
- Acoustic Performance: STC 48 rating with asymmetric 10+16A+12mm configuration.
- Hurricane Proof: Passes 9kg 2x4 missile impact at 50ft/s.
- Self-Cleaning Surface: Photocatalytic coating degrades organic deposits.
- Customizable Solutions: 3-40mm thickness combinations with low-E coatings.
- Lifetime Warranty: 25-year interlayer integrity guarantee.
|
