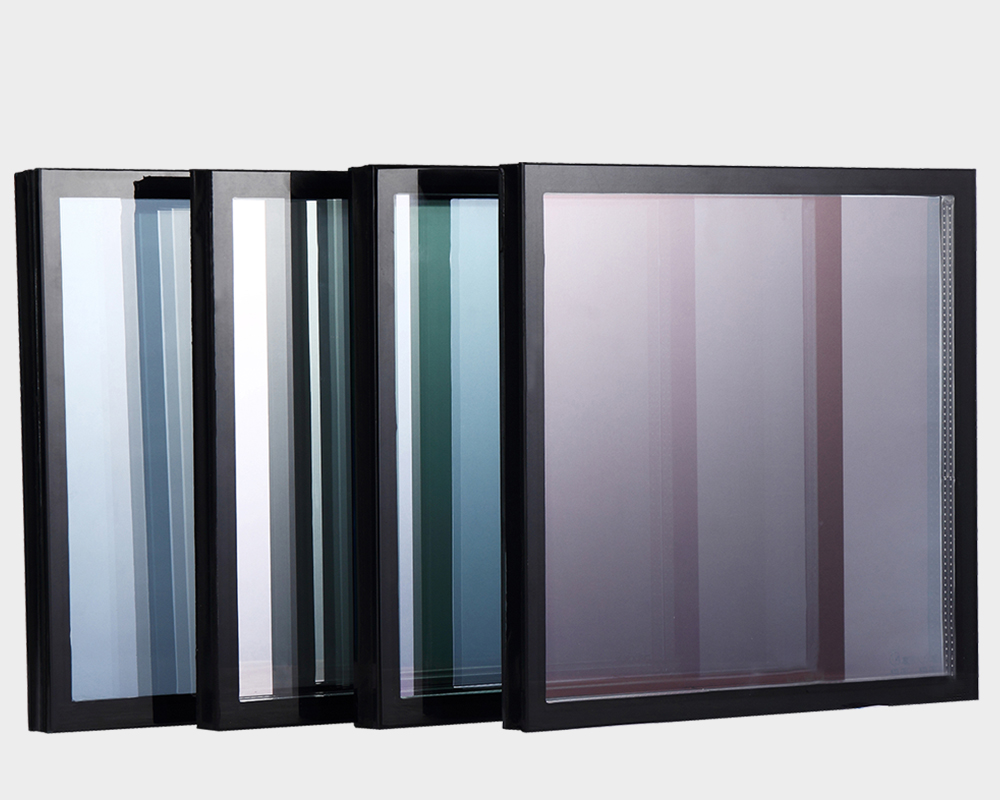

Acoustic Insulation Glass
|
Technical Specifications |
| Thickness of Single Glass |
4mm | 5mm | 6mm | 8mm | 10mm | 12mm, etc. |
|
Spacer |
6A | 9A | 12A | 16A | 20A | 23A | 27A | Custome Made |
| Layers |
Double or Triple with PVB layers |
| Filling |
Air or Argon |
| Size |
Custome Made |
| Color |
Custome Made |
|
Packing |
Steel Frame, Wooden Frame, or Plywood Crate Protection Packaging to Prevent any Damage |
Features
- Multi-Layer Sound Barrier: 3-ply laminated glass with 0.76mm acoustic PVB interlayer achieves STC 52 / OITC 42 sound reduction ratings.
- Frequency Targeting: Asymmetric glass thickness (4mm+6mm+8mm) effectively blocks 125Hz-4000Hz noise spectrum.
- Sealed Edge System: Thermoplastic spacer filled with argon gas maintains 100% cavity dryness for permanent acoustic performance.
- Anti-Vibration Design: Decoupled frame structure with silicone-based gaskets reduces 28dB flanking noise transmission.
- UV Control: Blocks 99% UV radiation while maintaining 85% visible light transmittance.
- Thermal Efficiency: Low-E coating + argon gas fill achieves U-value 0.28 W/(m²·K) with soundproofing benefits.
- Noise Mapping: 38dB traffic noise reduction verified at 10m distance from 75dB source (urban road simulation).
- Condensation Control: Warm edge spacer technology maintains 15°C higher edge temperature than conventional units.
|
