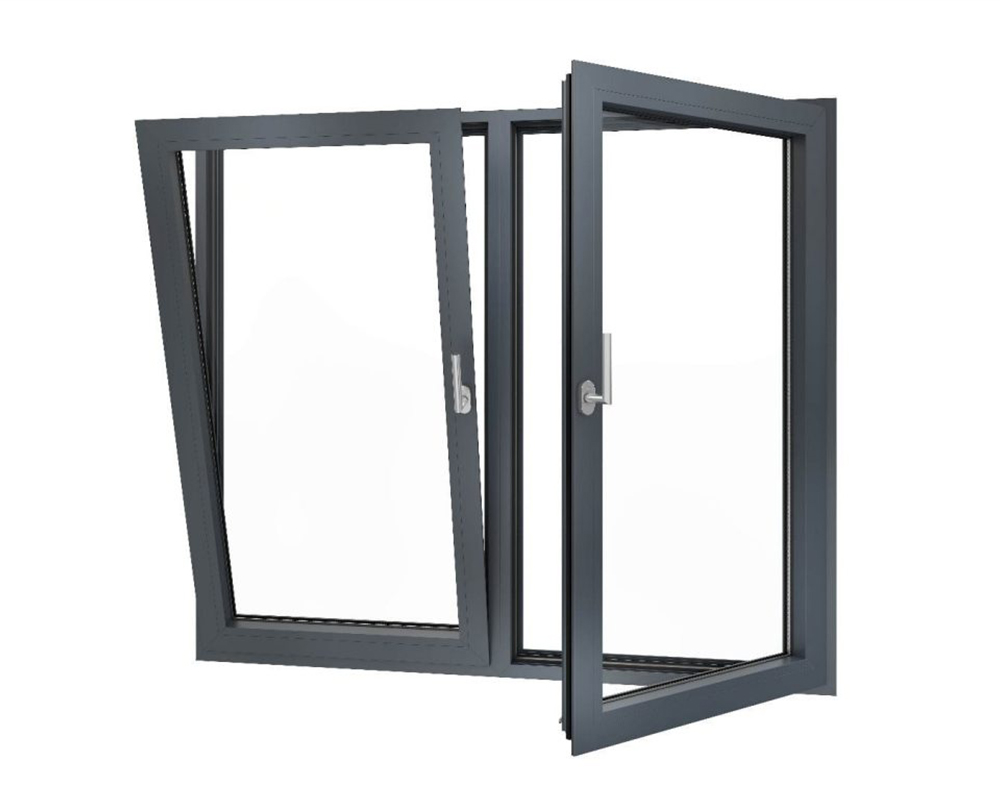

Tilt & Turn Window
|
Technical Specifications |
| Open Style |
Tilt & Turn | Open Inward |
|
Profile |
Aluminum | uPVC | Aluminum-Clad Wood |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Quadruple Sealing System: 4-layer EPDM gaskets achieve 0.8 m³/(m·h) air permeability.
- Dual-Mode Ventilation: Top tilt & full turn opening provides 320m³/h fresh air exchange.
- Advanced Security: 6-point locking system with mushroom-shaped pins meets burglary resistance.
- Reverse Cleaning Design: Inward tilt position allows safe external glass cleaning from indoors.
- Material: High grade aluminum alloy profiles.
- Acoustic Excellence: 42dB sound reduction with laminated glass configuration.
- Thermal Mastery: Warm edge spacer + Low-E coating achieves Uw=0.9 W/m²K.
- Storm-Proof Structure: Reinforced corners withstand 3000Pa wind load.
- Ergonomic Hardware: Friction-stay hinges with 25,000-cycle durability.
- Custom Finishes: Powder-coated RAL colors with woodgrain transfer printing options.
- Instant Installation: Pre-assembled sashes reduce on-site time by 50%.
|
