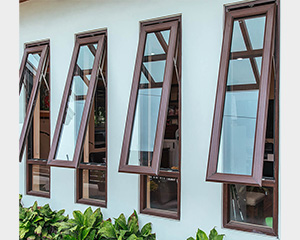

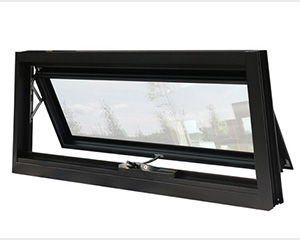

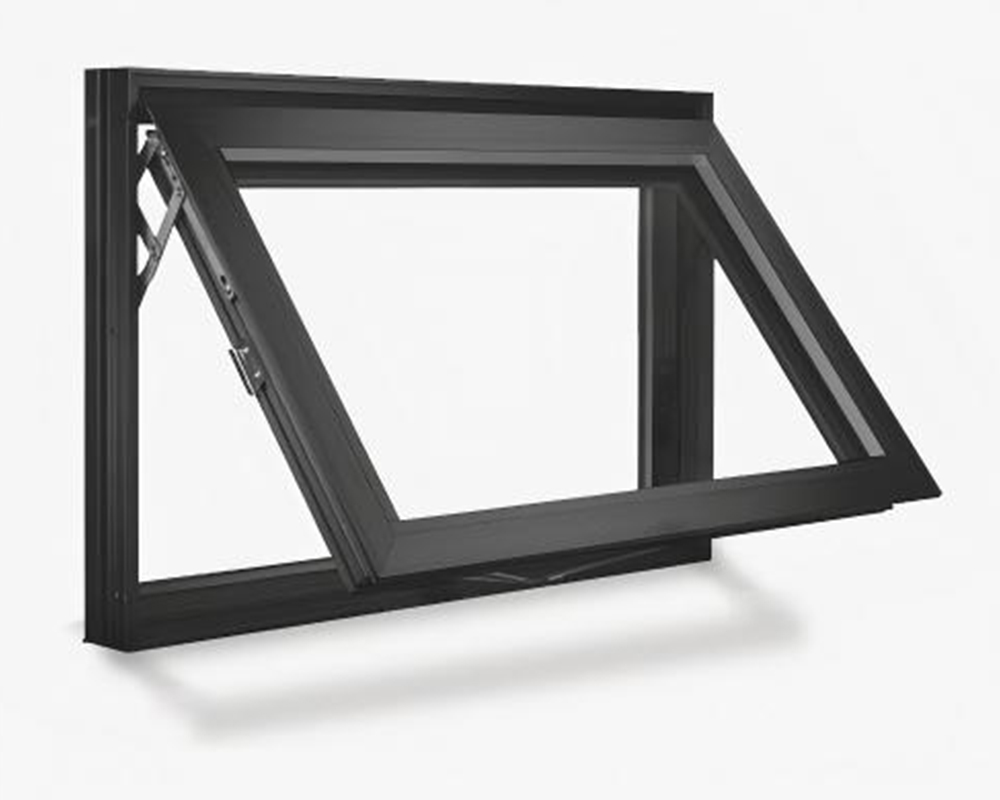

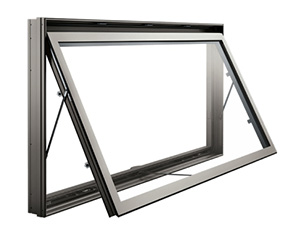

Awning Window
|
Technical Specifications |
| Open Style |
Open Outward |
|
Profile |
Aluminum | uPVC |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Top-Hinge Aerodynamics: 15° outward tilt creates negative pressure zone, achieving 2.8m³/h·m² airflow.
- Storm-Proof Design: Reinforced aluminum frame withstands additonal wind load.
- Dual Drainage System: T-track channels with 5% slope rate discharge 3.2L/min per linear meter.
- Rain-Safe Ventilation: Opening limit allows continuous ventilation during rainfall.
- Thermal Break: Polyamide barrier achieves U-value 0.85 W/(m²·K) with triple EPDM seals.
- Security Locking: Multi-point shootbolt system meets forced entry resistance.
- Self-Storing Screen: Integrated retractable 18/14 mesh insect screen.
- Low Profile Frame: Slim sightlines with wide opening angle for space optimization.
- Corrosion Defense: Aluminum alloy profiles with high properties are suitable for coastal applications.
- Acoustic Performance: 32mm asymmetrical glazing achieves STC 37.
- Custom Configurations: Available in 300-2400mm widths with radius/corner options (R200-R2000mm).
|
