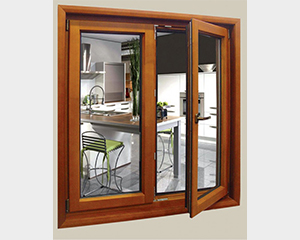

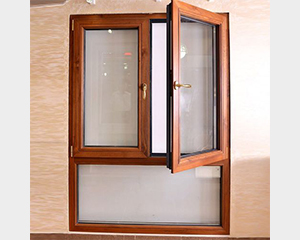

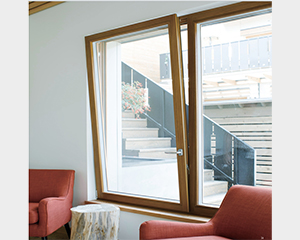

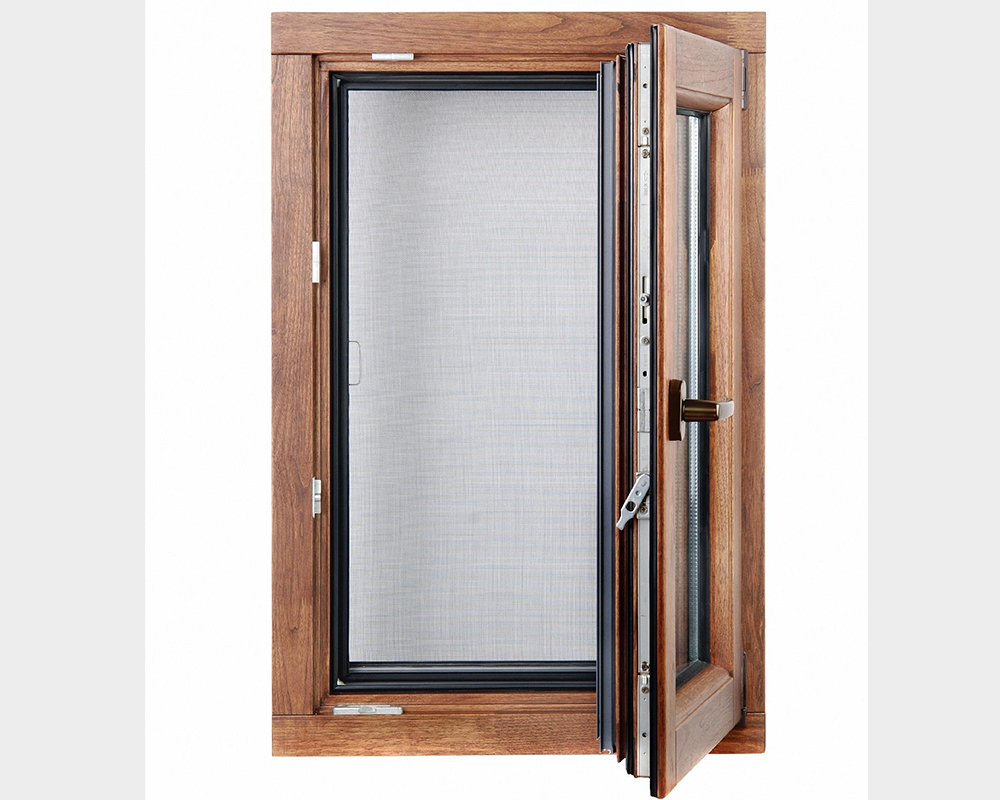

Composite Window
|
Technical Specifications |
| Open Style |
Open Outward | Open Inward | Sliding |
|
Profile |
Aluminum | uPVC | FRP | Timber |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Hybrid Frame Construction: Aluminum exterior + engineered wood interior achieves 0.68 W/(m²·K) U-value.
- Thermal Break System: Polyamide spacer reduces thermal bridging by 82%.
- Quadruple Sealing: Triple EPDM + silicone compression seals achieve Class 4 airtightness.
- Impact Resistance: Tempered outer glass withstands 90m/s windborne debris.
- Acoustic Performance: 48mm asymmetric glazing reaches STC 42.
- Dual Security: 10-point locking system + laminated glass.
- Weatherproof Design: Integrated drainage channels discharge 4.5L/min per meter.
- Condensation Control: Thermal edge spacer maintains CRF 80 rating.
- Corrosion Resistance: Aluminum alloy profiles with high properties are suitable for coastal applications.
- Fire Safety: 60-minute integrity with fire-rated glazing.
- Customization: 200+ RAL colors, 300-2400mm sizes.
- Self-Cleaning: Nano-coating reduces maintenance by 70%.
|
