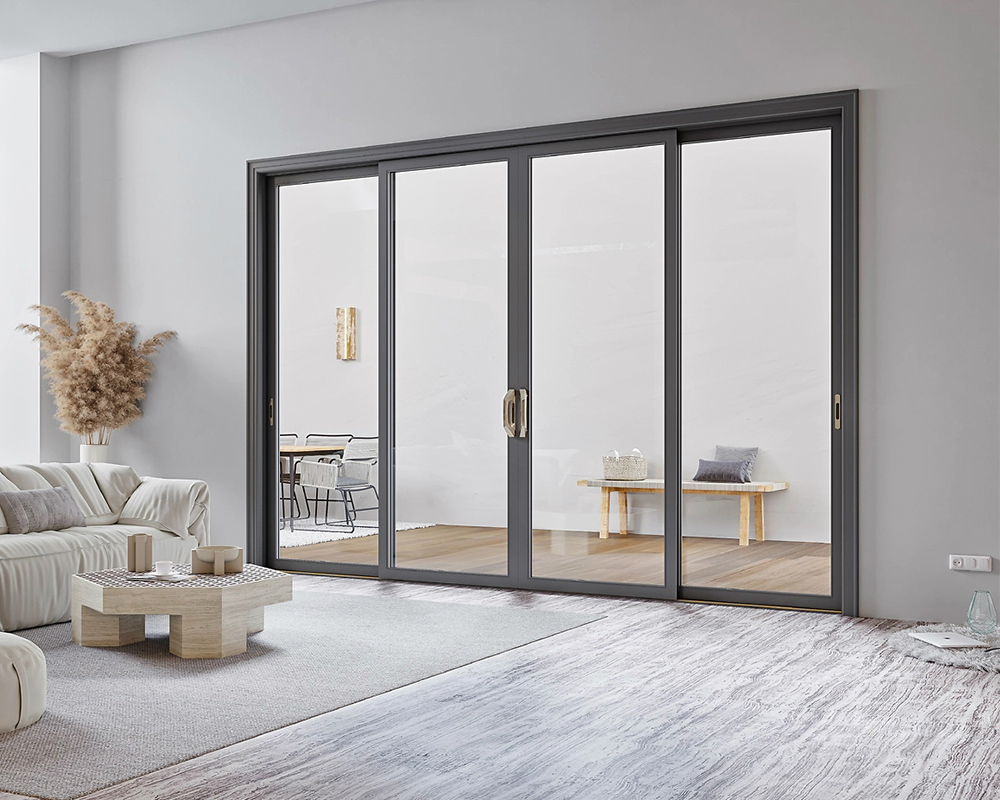

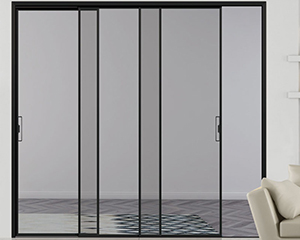

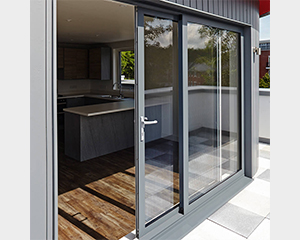

Sliding Door
|
Technical Specifications |
| Open Style |
Sliding |
|
Profile |
Aluminum | uPVC | Aluminum-Clad Wood |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Wide Opening Design: 90% visible glass area with 1200-4000mm panel widths for seamless indoor-outdoor integration.
- Quadruple Sealing: Triple brush + silicone seals achieve 0.03 m³/(m·h) air leakage.
- Security Locking: 10-point dual-directional system.
- Heavy-Duty Rollers: Stainless steel bearings support 800kg weight with 100,000+ cycles.
- Thermal Break: Polyamide barrier achieves U-value 0.68 W/(m²·K).
- Acoustic Control: 44dB STC rating with laminated glass.
- Anti-Derailment: Self-locking wheel mechanism prevents 200kg lateral force displacement.
- Corrosion Defense: Aluminum alloy profiles with high properties are suitable for coastal applications.
- Energy Efficient: Low-E coating + argon gas achieves SHGC 0.28.
- Custom Configurations: 200+ RAL colors, 300-3000mm heights.
- Self-Cleaning Track: Nano-coating reduces 70% debris accumulation.
|
