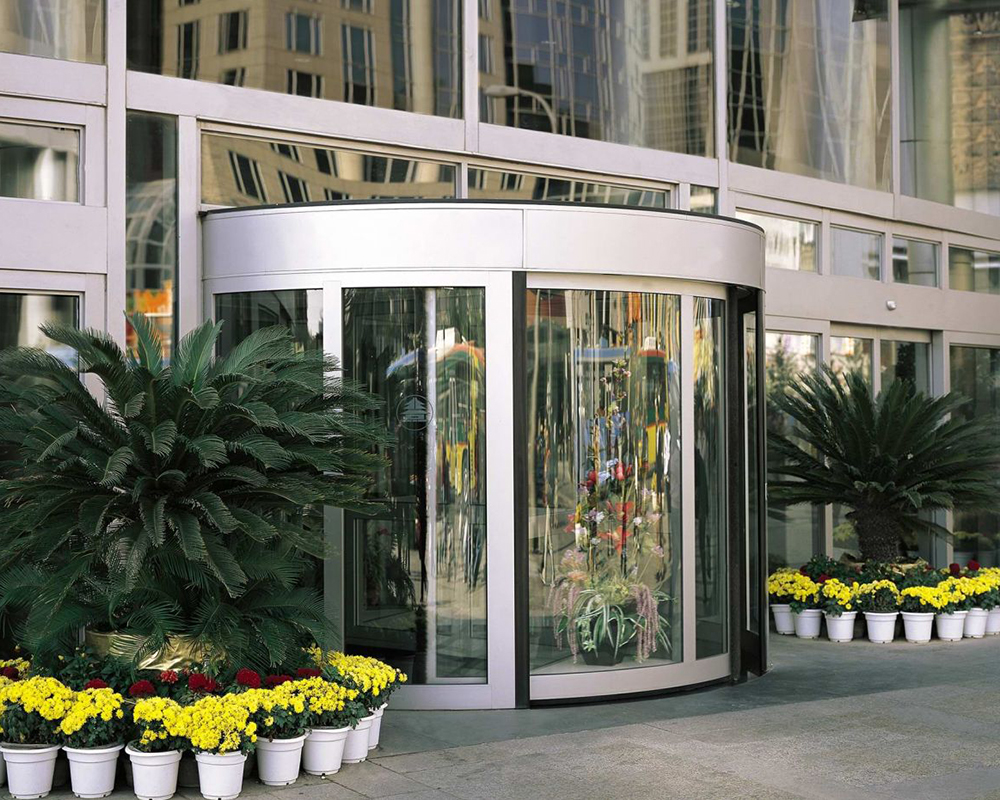

Revolving Door
|
Technical Specifications |
| Open Style |
Rovolving |
|
Profile |
Aluminum |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Airtight Rotation: Quadruple brush seals maintain 0.15 m³/(m·h) air leakage during operation.
- Smart Speed Control: Sensor-activated 0.3-1.2m/s adjustable rotation speed.
- Emergency Release: Collapsible wings open 180° in 2 seconds for fire egress.
- Thermal Barrier: Thermal break profile achieves U-value 0.75 W/(m²·K).
- Structural Capacity: Aluminum frame withstands 2500Pa wind load.
- Energy Recovery: Integrated heat exchanger recovers 80% HVAC energy.
- Custom Configurations: 3/4-wing options, 2400-4000mm diameters, 200+ RAL colors.
- Corrosion Defense: Aluminum alloy profiles with high properties are suitable for coastal applications.
- Low Maintenance: Brushless DC motor ensures 500,000+ cycles.
|
