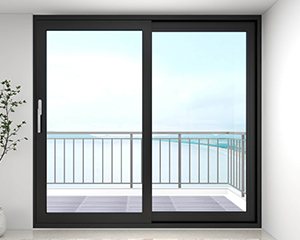

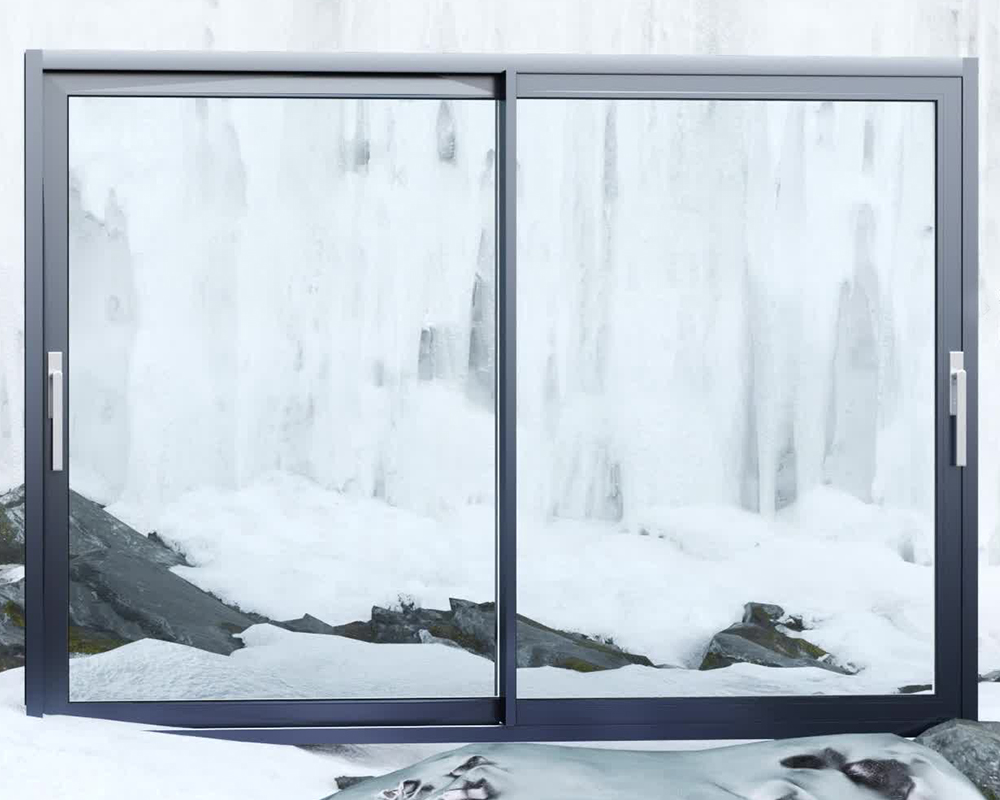

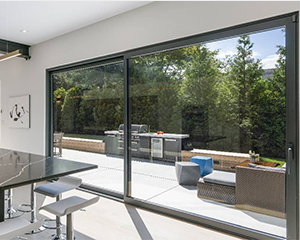

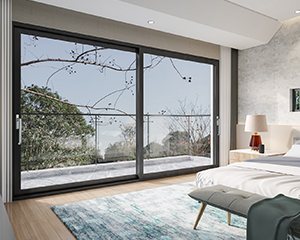

Lift & Sliding Door
|
Technical Specifications |
| Open Style |
Lift & Sliding |
|
Profile |
Aluminum | uPVC | Aluminum-Clad Wood |
| Glazing |
DGU | TGU | BBG | Tempered | Laminated | Low-E | Insulated | Frosted |
| Sealing System |
High Quality EPDM or Silicone Sealant |
| Size |
Custome Made |
| Color |
White | Grey | Brown | Black | Custome Made |
|
Packing |
Pearl Cotton or Wooden Crate Protection Packaging to Prevent any Damage |
Features
- Vertical Lift Mechanism: 120mm vertical lift range enables smooth sliding with 0.5N/mm² rolling friction.
- Structural Capacity: Thicker 6063-T6 aluminum profiles withstand 6000Pa wind load.
- Quadruple Sealing: Triple EPDM + brush seals achieve 0.02 m³/(m·h) air infiltration.
- Heavy-Duty Rollers: Stainless steel bearings support 800kg door weight with 100,000+ cycles.
- Thermal Break: Polyamide barrier achieves U-value 0.65 W/(m²·K).
- Acoustic Performance: 52dB STC rating with laminated glass.
- Security Locking: 16-point dual-directional system meets forced entry standards.
- Corrosion Defense: Aluminum alloy profiles with high properties are suitable for coastal applications.
- Custom Configurations: 2000-6000mm widths, 200+ RAL colors.
- Fire Safety: 60-minute integrity with glazing.
- Energy Efficiency: Low-E coating + krypton gas achieves SHGC 0.25.
- Seismic Rated: Withstands 0.3g ground acceleration.
|
